2015-2023 Ford Mustang Vertical Door Conversion Kit | VDI VDCFM15

2015-2023 Ford Mustang Vertical Door Conversion Kit

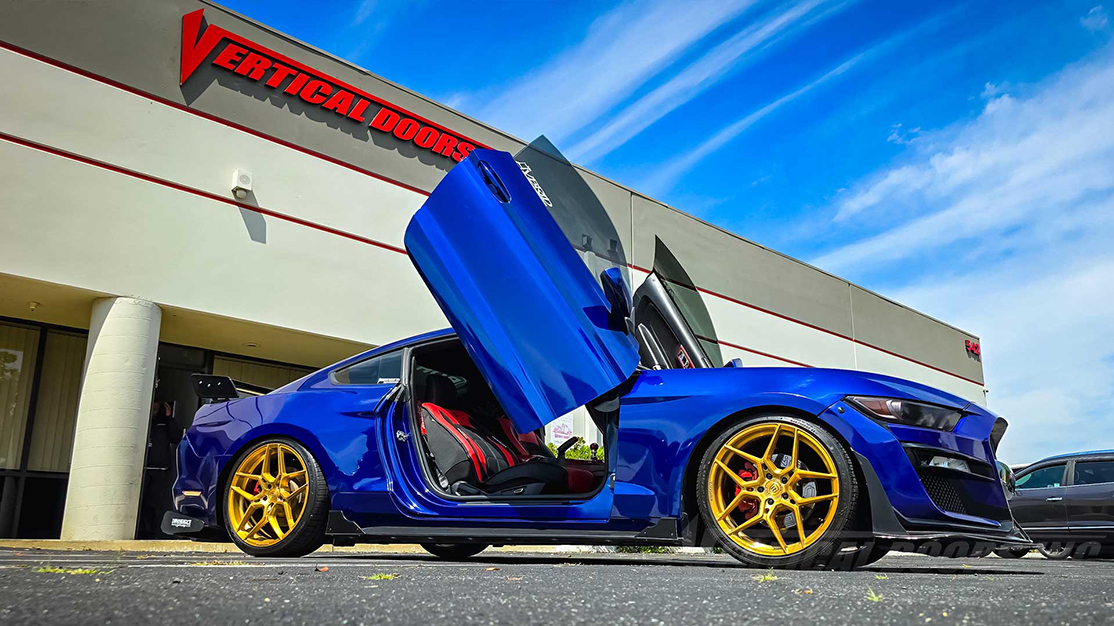

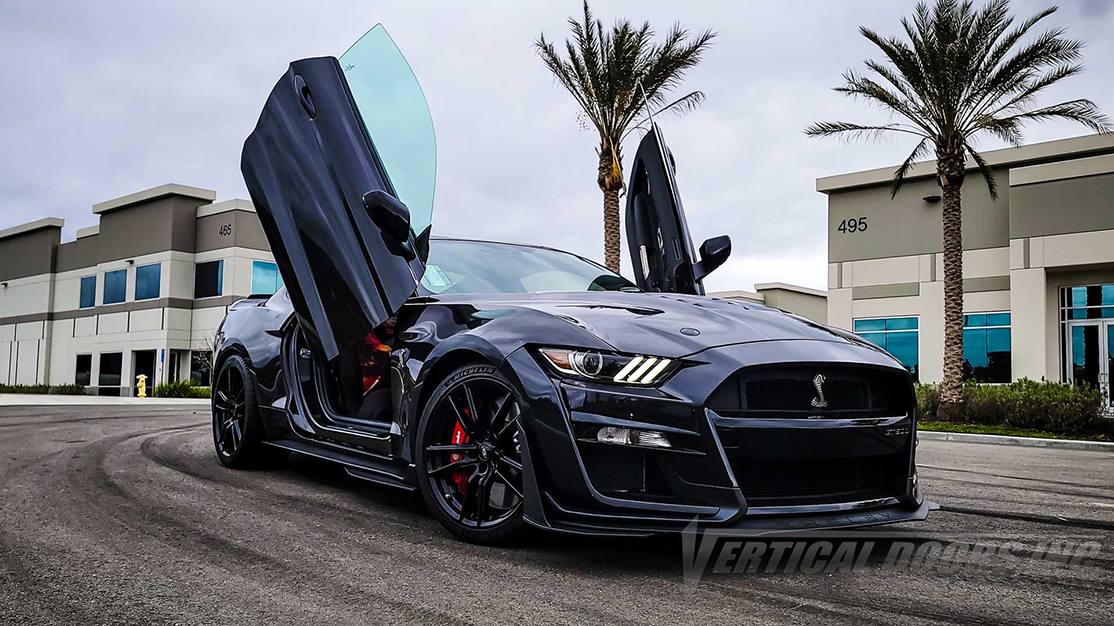

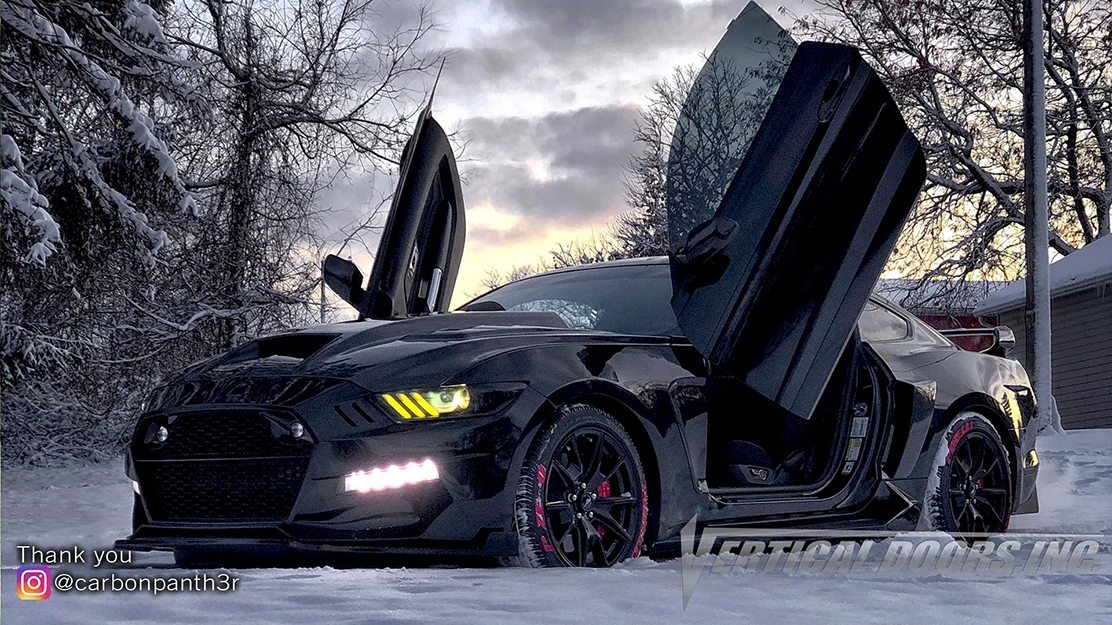

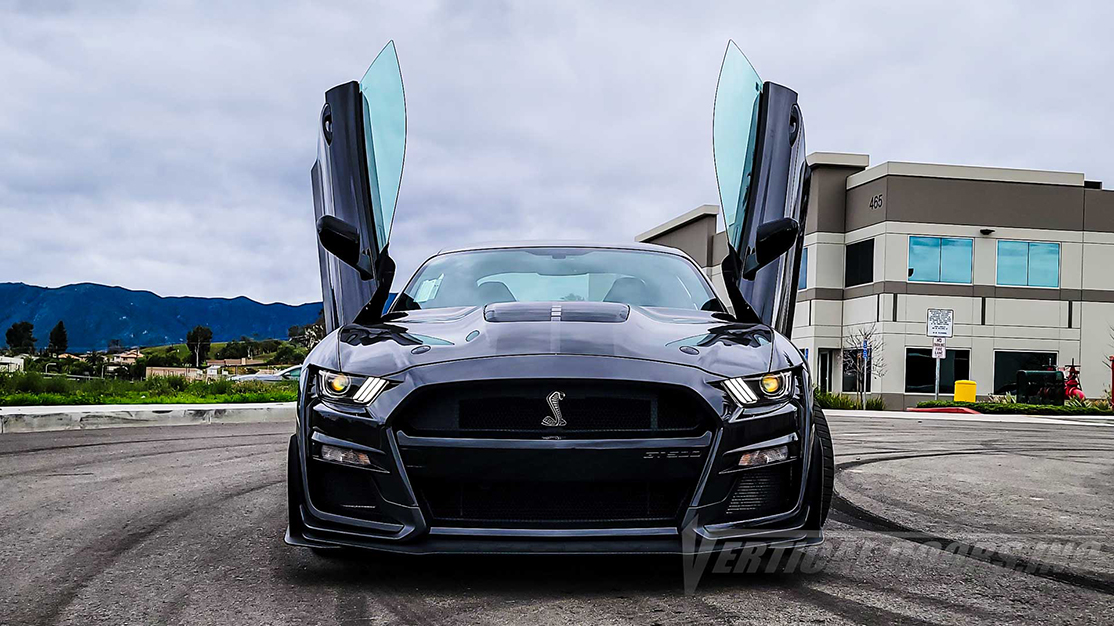

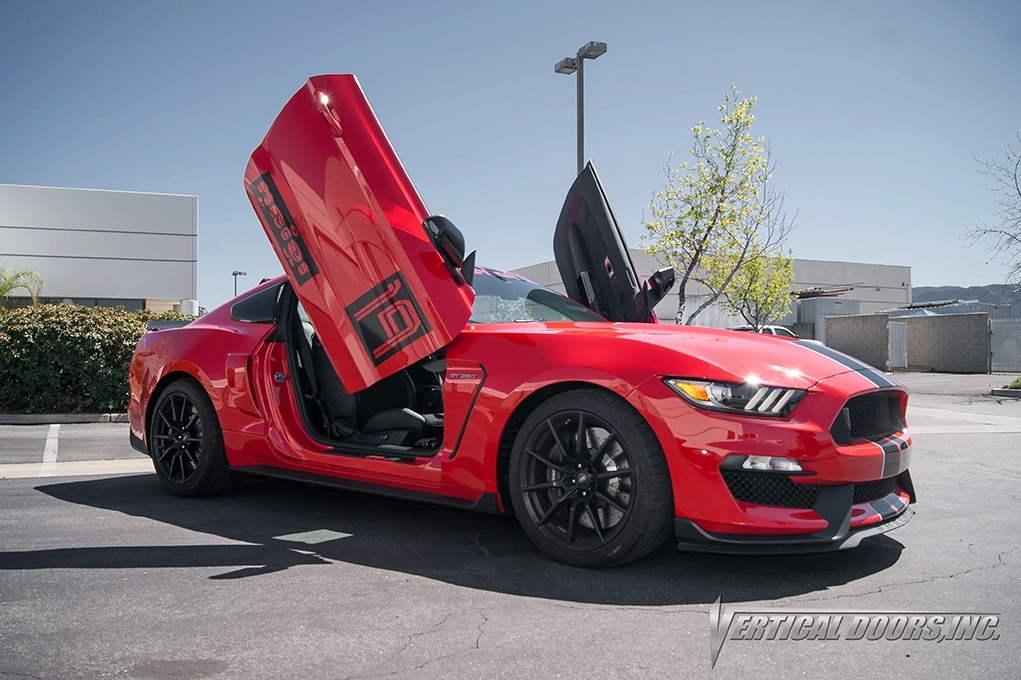

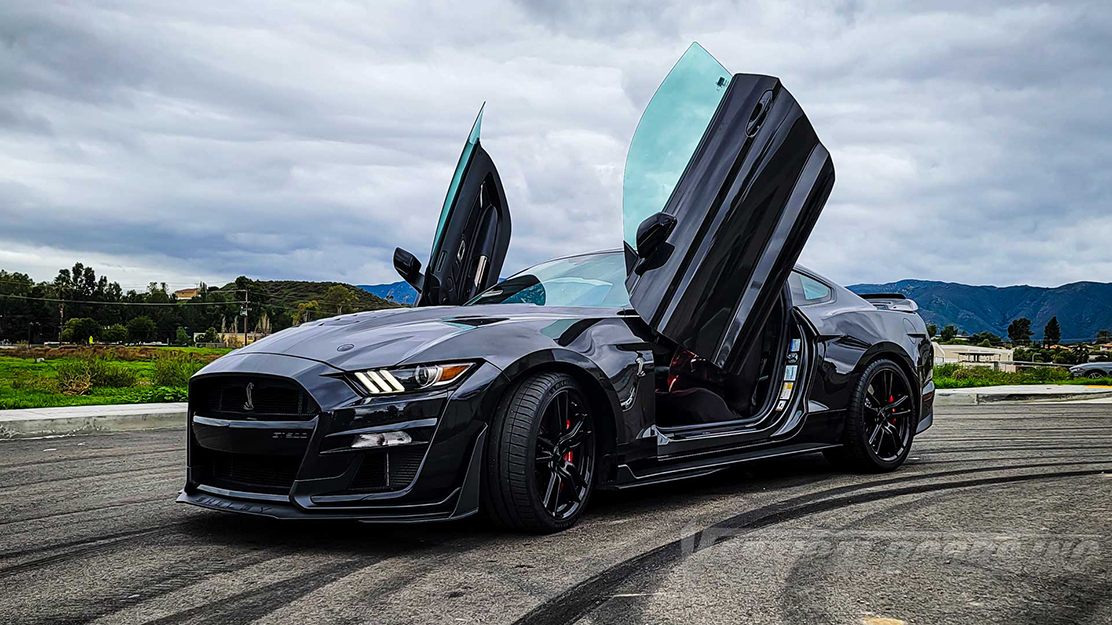

Vertical Doors, Inc. VDCFM15 is a vehicle-specific vertical door conversion kit designed for the 2015-2023 Ford Mustang. The system retains the factory front doors and changes their movement so they open outward first and then raise vertically for the distinctive Lambo door / scissor door look.

Designed for the sixth-generation Ford Mustang (S550), this VDI system provides a purpose-built hinge solution rather than a universal weld-on conversion. Confirm your exact model year and body style before ordering.

Match Your S550 Mustang With Vertical Doors

The S550 Mustang brought a lower roofline, wider rear stance and modernized chassis architecture while retaining the long front doors that define the Mustang's coupe profile. A vertical door conversion adds a dramatic custom appearance while allowing the factory front doors to remain in place.

The VDI system is designed around the vehicle's factory hinge area and provides the hardware necessary to convert the front doors to vertical operation.

The application may be relevant to Mustang configurations including EcoBoost, GT, Bullitt, Mach 1 and Shelby models within the listed model-year range; however, trim name alone does not establish fitment. Always confirm the exact vehicle configuration and body style.

Product Specifications

What Comes With the VDCFM15 Kit?

• One driver-side Vertical Doors, Inc. hinge assembly
• One passenger-side Vertical Doors, Inc. hinge assembly
• Two gas shocks
• Required mounting hardware
• Vehicle-specific installation instructions

The system uses the Mustang's original front doors. The VDI hinge assemblies and gas shocks are installed to change the doors from their original movement to vertical operation.

How Do the Vertical Doors Work?

Once installed and properly adjusted, the Mustang door opens outward in the normal direction until it reaches the hinge system's stopping point. The door can then be raised vertically.

The included gas shock assists with the upward movement. Proper installation and adjustment are important for smooth operation and proper door alignment.

Installation Information

Although the VDI system is designed as a vehicle-specific mounting solution, bolt-on does not mean modification-free. Installation requires careful disassembly, installation, adjustment and clearance work.

Installation commonly involves:

• Front-fender removal to access the factory hinge area
• Door-panel removal to access wiring and obtain additional wire slack
• Wiring management and routing
• Non-visible inner-fender trimming for clearance
• Hinge installation and adjustment
• Final door alignment and clearance checks

The factory wire boot is cut in half for routing, but the factory wiring generally does not need to be cut. Follow the supplied VDI instructions for the specific installation.

Before removing the original hinges, it is recommended to use 2-inch painter's tape to mark the factory door alignment. Place reference marks across the door and adjacent body panels near the hinges and firewall. These marks can help reproduce the original door position during reassembly.

If you are not experienced with body-panel removal, door alignment, trimming, drilling or tapping where applicable, and automotive wiring clearance, professional installation is recommended.

Professional Installation Options

Vertical Doors, Inc. offers several installation options depending on product eligibility, location and scheduling.

Before You Order

1. Confirm your Mustang is a 2015-2023 model.
2. Confirm the exact model year and body style.
3. Confirm the vehicle is a 2-door Mustang.
4. Confirm whether the vehicle is a fastback or convertible.
5. Disclose aftermarket fenders, widebody components or custom bodywork.
6. Disclose previous collision repair or replacement hinges in the hinge area.
7. Review the manufacturer's current fitment information.
8. Review current shipping and return policies before purchasing.

When in doubt, verify fitment before placing your order.

Frequently Asked Questions

Is the VDCFM15 a universal Lambo door kit?

No. The VDCFM15 is a vehicle-specific Vertical Doors, Inc. application for the listed 2015-2023 Ford Mustang. It is not a universal weld-on hinge kit.

Does it fit every 2015-2023 Mustang?

Do not assume that every trim or body configuration automatically uses the same application. Confirm the exact model year, model, body style and hinge-area configuration before ordering.

Does the kit replace the factory doors?

No. The factory front doors are retained. The VDI hinge assemblies and gas shocks change how the doors open.

Does installation require trimming?

Yes. Installation commonly requires non-visible clearance work, wiring management, hinge adjustment and careful final door alignment.

Do the factory wires need to be cut?

The factory wire boot is cut in half for routing, but the factory wiring generally does not need to be cut. Follow the supplied VDI installation instructions.

Can VDI help after I purchase the kit?

Yes. Vertical Doors, Inc. provides product support covering fitment, installation, adjustment, operation and replacement parts.
